When dealing with high-vibration machinery, heavy loads, or thermal expansion, a standard flat washer often falls short. This is where the unique design of a Belleville washer, or conical spring washer, becomes essential. These washers provide a high spring force in a compact space, maintaining critical bolt tension and preventing loosening under the most demanding conditions.
Selecting the right Belleville washer, however, depends on material, size, and application requirements. From corrosion-resistant stainless steel sets for general maintenance to high-strength, large-diameter discs for industrial equipment, the options are vast. Our review simplifies this selection process by highlighting the top-performing Belleville washers available for your heavy-duty projects.
Our Top Picks for Belleville Washers
- Hilitchi 215-Pcs Metric 304 Stainless Steel Belleville Washer Set
- 3/8″ Belleville Washers Conical Disc Spring Cup Washers 304 Stainless
- 220PCS Metric M3 to M10 304 Stainless Steel Conical Spring Washer Kit
- Glarks 160pcs Conical knurled Spring Washer, 65Mn Steel Wedge Locking
- Belleville Washers Conical Disc Spring Cup Washers High-Strength 65Mn
- Metric Steel Belleville Spring Washer, 4.409″ OD, 10,493 Newtons Load
- 302 Stainless Steel Belleville Spring Washers, 0.505″ ID, 1″ OD
- The Hillman Group 280330 3/4-Inch Flat Washer Hardened, 20-Pack
- Belle Bushing BELLE-0.5 Belleville Washer, 1/2″ OD Carbon Steel
Hilitchi 215-Pcs Metric 304 Stainless Steel Belleville Washer Set
For those who need a versatile assortment for various projects, the Hilitchi 215-piece set is an excellent starting point. This kit includes seven of the most commonly used metric sizes, from M3 to M12, ensuring you have the right washer for a wide range of fasteners. The comprehensive selection makes it ideal for workshops, automotive repair, and general machinery maintenance.
Constructed from 304 stainless steel, these washers offer very good corrosion resistance, making them suitable for use in humid or demanding environments where rust could be a concern. The material ensures long-term reliability without succumbing to degradation. Having an organized set of these durable components on hand saves time and effort during assembly and repair tasks.
3/8″ Belleville Washers Conical Disc Spring Cup Washers 304 Stainless
This product is perfect for applications requiring a specific 3/8-inch size with the reliable properties of stainless steel. The washers are designed with variations in edge width, including narrow, medium, and wide edges, which can accommodate different load distribution needs and seating requirements. This subtle design variation provides flexibility in precise engineering applications.
Made from 304 stainless steel, they provide excellent corrosion resistance and general wear resistance, ensuring consistent performance. The one-sided embossing adds to their structural integrity and can aid in specific seating scenarios. For those working on projects that demand a specific imperial size and material durability, this is a focused and practical choice.
220PCS Metric M3 to M10 304 Stainless Steel Conical Spring Washer Kit
Another robust assortment kit, this 220-piece set covers six essential metric sizes from M3 to M10. It is designed to meet diverse fastening needs in mechanical combinations, particularly for anti-vibration and sealing parts. The kit’s range makes it a valuable asset for anyone dealing with multiple bolt sizes in their work.
These washers feature a flat head design that promotes even force distribution, leading to a better and more secure fastening effect. The deeper, sharper thread design increases friction, which helps prevent slipping during rotation and under vibration. This combination of features ensures a reliable lock that maintains tension in dynamic environments.
Glarks 160pcs Conical knurled Spring Washer, 65Mn Steel Wedge Locking
The Glarks set stands out due to its material and unique toothed design. Made from high-quality 65Mn steel, these washers are built for strength and durability, capable of withstanding heavy loads and harsh operating conditions. A surface coating is applied to enhance corrosion resistance and extend the product’s service life.
These are not standard Belleville washers but rather wedge locking washers with a double-edged, toothed surface. This design creates significant tension between the bolt and nut, drastically increasing friction. They are particularly effective at preventing loosening caused by intense vibration or dynamic forces, making them suitable for high-stress applications.
Belleville Washers Conical Disc Spring Cup Washers High-Strength 65Mn
This product offers a value pack of 5/16-inch Belleville washers constructed from 65Mn steel, a high-strength spring steel known for its excellent load-bearing capabilities. The larger quantity in the pack ensures you have enough for ongoing projects or multiple installations, providing great value for frequent users.
The high-strength material is chosen for its resilience and ability to maintain spring force under substantial pressure. The design is user-friendly, made to stay in place and not slide easily during installation, which simplifies the assembly process. This combination of durability, quantity, and ease of use makes it a reliable choice for demanding workplace environments.
Metric Steel Belleville Spring Washer, 4.409″ OD, 10,493 Newtons Load
This is a heavy-duty industrial-grade Belleville washer designed for the most demanding applications. With an outer diameter of over 4.4 inches and a massive maximum load capacity of 10,493 Newtons, this washer is built to handle extreme pressure and stress that would overwhelm smaller, standard washers.
It conforms to the DIN 2093 standard, which specifies the dimensions, material, and load characteristics for disc springs, ensuring quality and predictable performance. This washer is suited for large machinery, pressing equipment, and any assembly where maintaining immense bolt preload is critical for safety and operation.
302 Stainless Steel Belleville Spring Washers, 0.505″ ID, 1″ OD
These washers are made from 302 stainless steel, a grade known for its excellent corrosion resistance and high strength, particularly in thinner gauges. With a 1-inch outer diameter and a precise inner diameter, they are designed for applications requiring a specific size and material property in a smaller form factor.
The product specifications include detailed measurements for free height and compressed height, which are crucial for engineers calculating the spring force and deflection in their designs. The plain finish and adherence to material standards make these washers a professional choice for precision instruments, aerospace components, or any application where reliability and corrosion resistance are paramount.

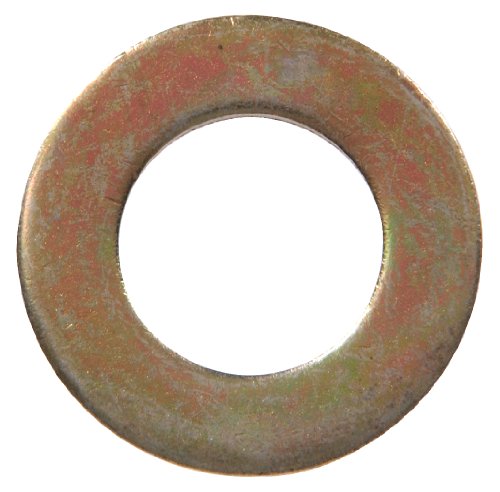

The Hillman Group 280330 3/4-Inch Flat Washer Hardened, 20-Pack
While not a conical Belleville washer, this Hillman product is a hardened flat washer that serves a vital complementary role. Grade 8 hardened washers are engineered to increase the load-bearing surface under a fastener’s head, effectively distributing the load over a wider area.
This function is critical for preventing bolts or nuts from pulling through softer materials or damaging surfaces. In assemblies using Belleville washers, a hardened flat washer is often used between the nut and the Belleville washer to ensure proper seating and function. This 20-pack provides a cost-effective supply of these essential components.
Belle Bushing BELLE-0.5 Belleville Washer, 1/2″ OD Carbon Steel
This offering from Belle Bushing provides a specific small-sized Belleville washer, with a 1/2-inch outer diameter and a 1/4-inch inner diameter. Made from carbon steel, these washers offer high strength and are suitable for general industrial applications where extreme corrosion resistance is not the primary concern.
The pack of ten is convenient for smaller projects or for use in prototypes and equipment repairs. Carbon steel Belleville washers are a common choice for their favorable strength-to-cost ratio and reliable spring characteristics. This product is a straightforward solution for those who need a specific, small imperial size for their fastening system.
Buying Guide: How to Choose the Best Belleville Washer for Your Project
When I need to pick out Belleville washers for a heavy-duty job, I don’t just grab the first ones I see. There’s a method to it, and getting it wrong can mean a project that fails under pressure. Since we’re talking about the 9 Best Belleville Washers Review: Top Choices for Heavy-Duty Applications, I figure it’s crucial to walk you through what I look for. The goal is to match the washer’s capabilities directly to the demands of your application.
First and foremost, I always start with the load requirements. What is the maximum static and dynamic load the assembly will face? Belleville washers are all about maintaining a high clamping force, so you need a washer that can handle the expected load without flattening out completely, a state called “flatting.” This is where the load-deflection curve comes in. I make sure to check the manufacturer’s specs to see how much force the washer will exert at a specific deflection. It’s not just about the maximum load; it’s about how it behaves throughout its range of motion.
Next, I look at the material and finish. For most of my heavy-duty work, I stick with carbon steel because it offers a great balance of strength and cost. However, if the environment involves moisture, chemicals, or high temperatures, I switch to stainless steel (like 304 or 316) or even Inconel. The finish is just as important. A plain finish might be fine for a dry, indoor setting, but I often need zinc plating or phosphating for corrosion resistance. For the toughest conditions, I specify a yellow dichromate finish on carbon steel washers for that extra layer of protection.
Size is a deceptively simple factor. You need to consider the outer diameter, inner diameter, and thickness. But the most critical dimensional characteristic is the height-to-thickness ratio. This ratio determines the washer’s spring rate and its force characteristics. A higher ratio means a steeper load-deflection curve – it gets to a high load quickly. I also double-check that the washer will fit properly on the bolt or stud and within the allotted space in the assembly. There’s nothing more frustrating than receiving parts that don’t fit.
Finally, I think about how I’ll use them. Most of the time, I use Belleville washers in parallel or series stacks to adjust the force and deflection. Putting them in parallel (nested in the same direction) doubles the force at the same deflection. Putting them in series (stacked opposite each other) doubles the deflection for the same force. Getting this stacking configuration right is the key to fine-tuning the joint’s behavior. I always plan this out on paper before I even place an order.
FAQ
What is the primary advantage of using a Belleville washer over a standard flat washer?
The main advantage is the spring action. A standard flat washer just distributes load. A Belleville washer, with its conical shape, acts like a spring. This is huge for heavy-duty applications because it maintains a tight clamp force even when the joint loosens slightly due to vibration, thermal expansion, or material creep. It’s a proactive solution to bolted joint failure, whereas a flat washer is just a passive spacer.
Can I use a single Belleville washer, or do they need to be used in stacks?
You can absolutely use a single Belleville washer, and for many applications, one is perfectly sufficient. I use a single washer when I need a high spring rate in a very compact space. However, stacking them in parallel or series gives you a lot of control. If a single washer doesn’t provide enough force or enough deflection for your needs, stacking is the way to go. It’s all about designing the spring characteristic you need.
How do I know when a Belleville washer needs to be replaced?
You should inspect them during routine maintenance. The biggest sign of a problem is permanent set, which is when the washer doesn’t return to its original free height after the load is removed. If it’s flattened out or has lost its pronounced conical shape, it’s time for a replacement. Also, look for signs of cracking, especially around the inner or outer diameter edges, and significant corrosion that pits the surface, as this can create stress points.
Are Belleville washers suitable for high-temperature applications?
Yes, but you have to choose the right material. Standard carbon steel Belleville washers lose their spring properties at elevated temperatures. For high-temperature environments, I specify washers made from materials like Inconel 718 or certain high-carbon stainless steels that are specifically heat-treated to retain their strength and spring characteristics at temperatures exceeding 1000°F (538°C). Always check the manufacturer’s temperature ratings for the specific material.
What’s the difference between a Belleville washer and a wave spring washer?
While both provide a spring force, they behave quite differently. A Belleville washer is a single, solid, conical disc that provides a very high spring force for its size. A wave spring washer has multiple waves around its circumference and provides a much lower, softer spring force. I use Belleville washers when I need to counter large forces, like in a 9 Best Belleville Washers Review: Top Choices for Heavy-Duty Applications scenario. I’d use a wave spring for lighter pre-load or to take up small amounts of slack in a less critical assembly.
How does the orientation of a Belleville washer affect its function?
Orientation is critical. For a single washer, you typically orient it so the load is applied to the outer edge, forcing the cone to flatten. This is the standard way to achieve the designed spring force. If you flip it over, the behavior changes and it can be much stiffer or even act as a solid spacer. When stacking them, the orientation determines if you are stacking in parallel (for more force) or series (for more deflection). I always follow the assembly drawing precisely.
