Owning a Mercedes with the renowned 722.6 (also known as NAG1) transmission is a rewarding experience, but it comes with specific maintenance needs. This robust five-speed automatic is known for its longevity, yet it requires precise care, particularly concerning fluid levels and timely servicing, to reach its full potential. Neglecting these aspects can lead to costly repairs.
To help you maintain, diagnose, and repair your transmission with confidence, we’ve compiled a roundup of essential tools, parts, and fluids. From comprehensive repair manuals to the critical dipstick for checking fluid levels, these products are selected to empower any dedicated owner or technician to keep their Mercedes performing smoothly for years to come.
Essential 722.6 Transmission Tools, Parts, and Fluids
- ATSG Mercedes 722.6 / NAG 1 Automatic Transmission Repair Manual
- ATLIN Mercedes Transmission Dipstick for Mercedes 722.6 Transmissions
- Transmission Fluid Dipstick Tool for Select Mercedes Benz Vehicles
- 1220mm Mercedes Transmission Fluid Level Dipstick for Mercedes Benz
- Yeedaky 722.6 Master Overhaul Rebuild Kit Fit for Mercedes Benz
- Aisin 002089 Mercedes-Benz 5-Speed Automatic Transmission Filter Kit
- Liqui Moly 20036 Top Tec 1200 Automatic Transmission Fluid (1 Liter)
- Febi Bilstein 38130 Transmission Pan for Mercedes-Benz
ATSG Mercedes 722.6 / NAG 1 Automatic Transmission Repair Manual
Consider this manual your master guide to the inner workings of the 722.6 transmission. It is the definitive resource for technicians and serious DIYers, providing step-by-step procedures for everything from a basic service to a complete overhaul or rebuild. The depth of information is invaluable for accurate diagnosis and repair.
Inside, you’ll find high-quality charts, detailed valve body identification guides, comprehensive electrical diagrams, and clear wiring harness locations. This manual eliminates the guesswork, providing the technical specifics needed to properly service the transmission’s mechanical, hydraulic, and electronic systems with confidence.
ATLIN Mercedes Transmission Dipstick for Mercedes 722.6 Transmissions
One of the most critical aspects of 722.6 maintenance is checking the fluid level correctly, a task that requires a dedicated dipstick as one is not included from the factory. The ATLIN dipstick is a direct replacement for the OEM part, ensuring a perfect fit and reliable function. It is an essential tool for any owner.
This product stands out because it includes illustrated, step-by-step instructions. Since the procedure is different from checking engine oil, these instructions are crucial for obtaining an accurate reading. The dipstick itself features clear hot and cold markings, making the process straightforward and helping you avoid the common mistake of over or under-filling.
Transmission Fluid Dipstick Tool for Select Mercedes Benz Vehicles
This is another excellent option for a 722.6 transmission dipstick, designed to give you professional-grade results at home. It also features the necessary hot and cold level markings, removing the need to memorize specific measurement temperatures and simplifying the fluid check process significantly.
A key benefit of this kit is that it includes a new transmission cap locking pin and seal. These small components are often lost or damaged during service, and reusing an old one can lead to leaks. Having a new pin included ensures you can properly reseal the transmission dipstick tube after checking the fluid level.
1220mm Mercedes Transmission Fluid Level Dipstick for Mercedes Benz
With a total length of 1220mm (approximately 48 inches), this longer dipstick is specifically suited for Mercedes-Benz and Dodge Sprinter vans equipped with the 722.6, 722.7, 722.8, and 722.9 transmissions. Its extended reach is designed to navigate the taller engine bay of these commercial vehicles.
This tool provides broad compatibility, fitting most Sprinter models from 2002 to 2015, including those sold under the Dodge and Freightliner brands. It is a vital diagnostic tool for van owners and technicians, allowing for quick and accurate transmission fluid level checks to ensure the transmission is operating within its specified parameters.

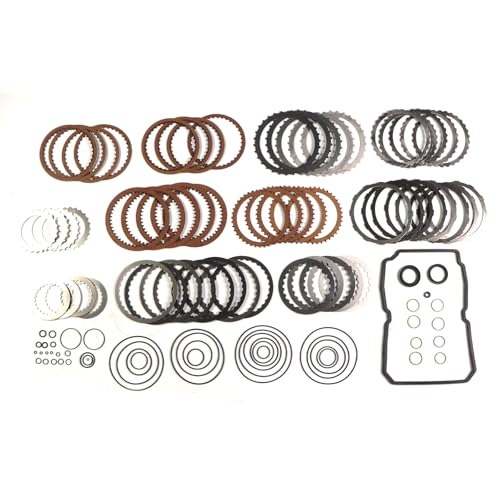

Yeedaky 722.6 Master Overhaul Rebuild Kit
For those facing a transmission rebuild, this master overhaul kit provides a comprehensive set of components needed to restore a 722.6 transmission to proper working order. It is a complete solution for a C-Typ 5-speed transmission, bundling the essential wear items into one package.
The kit includes a full set of friction plates and steel plates, which are critical for the clutch packs that facilitate gear changes. By using high-quality materials and undergoing multiple tests, this kit aims to provide the durability and performance required for a successful and long-lasting transmission overhaul.
Aisin 002089 Mercedes-Benz 5-Speed Automatic Transmission Filter Kit
Aisin is a respected manufacturer of automotive components, and this filter kit is designed to meet or exceed OEM specifications. The transmission fluid filter is a critical part of any service, as it traps harmful metallic debris and clutch material that can circulate and cause damage.
Using a high-quality filter from a trusted brand like Aisin ensures that your new transmission fluid remains clean and that the valve body and other precision components are protected. This kit is a fundamental part of a proper transmission fluid and filter change, which is the most important routine maintenance for longevity.
Liqui Moly 20036 Top Tec 1200 Automatic Transmission Fluid
Using the correct fluid is non-negotiable for the 722.6 transmission. Liqui Moly Top Tec 1200 is a fully synthetic automatic transmission fluid specifically formulated to meet the demanding requirements of Mercedes-Benz transmissions, including the 722.6. It provides the necessary friction characteristics and thermal stability.
This fluid helps to ensure smooth shifting, protect against wear, and maintain the health of the transmission seals. Its high-quality formulation resists breakdown under high temperatures, which is essential for maintaining consistent performance and protecting your investment in the transmission.
Febi Bilstein 38130 Transmission Pan for Mercedes-Benz
The transmission pan serves as the reservoir for fluid and the mounting point for the filter. Over time, the original pan can become damaged, develop leaks from the gasket surface, or the integrated magnet can become saturated. Replacing it is often part of a thorough service.
Febi Bilstein is a well-known supplier of OE-quality parts. This transmission pan is manufactured to precise standards to ensure a perfect fit and a reliable seal with the new gasket. Installing a new pan during a filter change can provide peace of mind and address any existing issues with the old component.
Buying Guide: What to Look For in an 8.6 Mercedes Transmission
If you’re in the market for a used Mercedes-Benz, particularly models from the mid-2000s, you’ve likely come across the 722.9 transmission, often referred to by its torque rating as the 8.6. This seven-speed automatic was a workhorse in many E-Class, S-Class, CLS-Class, and ML/GL models. From my own experience, it’s a transmission that can be brilliant when it’s healthy, but it has a few well-known quirks you absolutely need to check for before handing over any money.
The first thing I always do is a simple fluid check. This is non-negotiable. Find the transmission dipstick (it’s often a yellow handle), pull it out, and look at the fluid. It should be a clear, translucent red color. If it’s dark brown or black and smells burnt, that’s a major red flag. It tells me the fluid has been overheated and the transmission has likely been abused or neglected. Slipping, harsh shifts, or delayed engagement are common symptoms of old, worn-out fluid. A seller who can’t tell you the last time the fluid and filter were changed is a seller I’m probably going to walk away from.
Next, you need to take it for a test drive and pay very close attention to how it shifts. The most famous issue with this transmission is the “conductor plate” or “pilot bushing” failure. You’ll feel this as a harsh, clunky shift from 2nd to 3rd gear, especially when the transmission is cold. It might smooth out a bit as it warms up, but that clunk is a dead giveaway. Another thing to listen for is a whining noise, which could point to worn-out bearings inside the transmission itself. Make sure you test it at various speeds and loads—gentle acceleration, hard acceleration, and on deceleration.
Finally, ask about the transmission control module, or TCG. This is the computer that tells the transmission what to do. In some early versions, the internal seals can fail, allowing transmission fluid to seep into the electronics and cause all sorts of erratic shifting behavior. A replacement or a rebuilt TCG from a reputable source is the fix, but it’s not a cheap part. A well-maintained 8.6 Mercedes transmission can last a very long time, but buying one without doing your homework is a gamble. A pre-purchase inspection by a specialist who knows these transmissions inside and out is the best money you can spend. This best 8.6 Mercedes transmission review and maintenance guide is a starting point, but a professional’s eyes and a proper diagnostic scan are your best insurance policy.
FAQ
What is the most common problem with the Mercedes 722.9 (8.6) transmission?
Hands down, the most frequent issue is failure of the conductor plate and/or the pilot bushing. This typically manifests as a very harsh, jarring shift between 2nd and 3rd gear, especially when the transmission fluid is cold. It’s often mistaken for a serious mechanical failure, but it’s usually an electro-hydraulic problem. The good news is that it’s a repairable issue without needing a full transmission rebuild, though it does require dropping the transmission pan and replacing the affected components.
How often should I change the fluid in my 8.6 transmission?
This is a hotly debated topic, but based on everything I’ve seen and what mechanics tell me, the old “lifetime fill” claim from Mercedes is optimistic at best. For long-term reliability, I would strongly recommend a fluid and filter change every 60,000 to 80,000 miles. If you do a lot of towing, city driving, or aggressive driving, leaning towards the 60,000-mile interval is a smart move. Using the correct fluid is critical—only use Mercedes-approved ATF, as the wrong type can cause damage to the sensitive internal components.
Is it expensive to repair a faulty 8.6 transmission?
It really depends on the specific failure. Common repairs like the conductor plate and pilot bushing can cost between $1,000 and $2,000 at an independent shop, as it involves several hours of labor and the parts themselves. However, if the issue is more severe, like internal clutch pack wear or a failed torque converter, the cost can quickly climb to $3,000-$5,000 or more for a rebuild. This is why that pre-purchase inspection and regular fluid changes are so important; they help you avoid the big-ticket repair bills.
Can I drive my Mercedes if the transmission is slipping?
My strong advice is no, you should not. Driving with a slipping transmission is a great way to turn a small, manageable problem into a catastrophic and expensive one. Slipping causes extreme heat, which burns the fluid and damages the internal clutches and seals. What might have been a simple fix can quickly escalate into needing a full rebuild. If you notice slipping, get it to a qualified mechanic for a diagnosis as soon as possible. This is a key point in any best 8.6 Mercedes transmission review and maintenance guide: address problems early.
What Mercedes models use the 8.6 transmission?
This transmission was used in a huge range of Mercedes vehicles from roughly 2003 to 2010. You’ll find it in many popular models like the W211 E-Class (E350, E500), the W220 and W221 S-Class, the C219 CLS-Class, the R-Class, and the ML/GL SUVs (ML350, ML500, etc.). There are different variants for different engine torque outputs, but the core design and common failure points are largely the same across the board.
